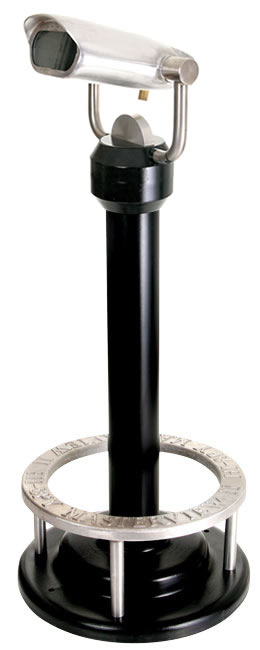

Non Coin-Operated Binoculars and Telescopes

Vista scopes makes non coin-operated binoculars and telescopes in both a standard model and an ADA (Wheelchair Accessible) model. We also make non coin-operated specialty models.

Once you decide on a non-coin model, you simply need to choose between magnifications.

Available Models

Model Style Magnification Coin Acceptance
M10XNC Binoculars 10X Mechanical
M20XNC Binoculars 20X Mechanical
M20XNCT Telescope 20X Mechanical
M35XNCT Telescope 35X Mechanical
M50XNCT Telescope 50X Mechanical

Specifications

  M10XNC M20XNC M20XNCT M35XNCT M50XNCT
Optics
Magnification 10x 20x
(Waterproof Optics)
20x
(Waterproof Optics)
35x
(Waterproof Optics)
50x
(Waterproof Optics)
Field of View 400 feet at
1000 yds
120 feet at
1000 yds
110 feet at
1000 yds
90 feet at 1000 yds 90 feet at 1000 yds
Focus Auto Focus Yes - reciprocating Yes Yes Yes
Objective Diameter 50 mm 60 mm 60 mm 60 mm 60 mm
Exit Pupil Aperture 5 mm 3 mm 3 mm 2.5 mm 2.5 mm
Interpupilliary Distance 2.5 inches 2.5 inches
Long Eye Relief yes
Construction

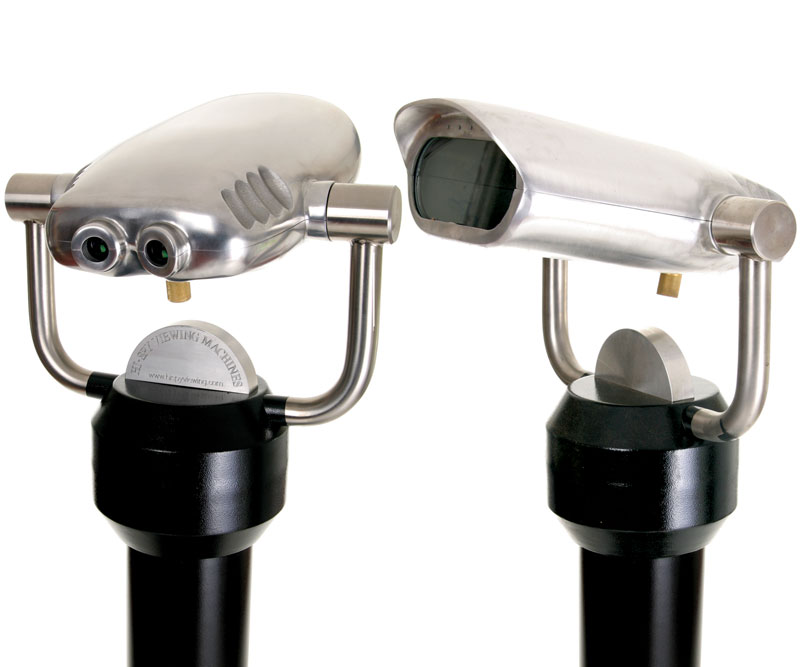

Viewing Head polished aluminum
Viewing Head Support Arms stainless steel
Main Tube powdercoated aluminum
0.1875 inch wall thickness
Base powdercoated aluminum
Standing Ring cast aluminum
Standing Ring Height from floor
12 inches
Dimensions
Machine Height 5ft. 2 in
Height at Eyepieces 5ft. 0 in
Machine Weight 165 lbs
Height of Standing Ring 12 inches
Diameter of Main tube 6 inches
Base Diameter 28 inches
Base Options Yes - we can provide custom flat steel plate bases for certain applications
Movements
Horizontal tapered roller bearing system - 285 degrees (can be modified on request)
Vertical bronze bearing on stainless steel trunnion - +/- 30 degrees
Other
Sign sign frame holes are pre-drilled and a stainless steel sign frame comes with each unit
Colors standard color is textured black with aluminum head.
Sand, moss green, blue, green and red are also available.
- On request, we can discuss other colors
Warranty
5 years on all parts
